Adding a Custom Block
This guide shows how to create an Enchanting Plus Table block with Anvil. It's written for Anvil beginners who already understand Minecraft concepts. Each step highlights what's necessary versus optional.
Every snippet on this page is taken from a project that compiles. Component arguments are keyword-only: write BlockDestructibleByMining(seconds_to_destroy=1.5), not BlockDestructibleByMining(1.5).
Define the Block
from anvil.api.blocks.blocks import Block
# Namespace is inferred from anvilconfig; only provide the short name here.
def enchanting_plus_table():
block = Block("enchanting_plus_table")
return block
Warning
Declare a Block with a unique name (e.g., "enchanting_plus_table"). Namespace comes from anvilconfig.
Server Description & States
from anvil.lib.jsonmodel.enums import ItemCategory
# Show the block in the creative inventory (optional)
block.server.description.set_menu_category(ItemCategory.Construction)
block.server.description.add_state("is_awesome", (False, True))
Note
Server‑side states are optional. If you don't define any, the block still exports and works. A state name without a namespace gets the project's (tut:is_awesome). States, permutations and traits are covered in Block states, permutations and traits.
Components — Visuals & Basics
from anvil.api.blocks.components import (
BlockCollisionBox,
BlockDestructibleByMining,
BlockGeometry,
BlockMaterialInstance,
BlockSelectionBox,
InstanceSpec,
InstanceVariant,
)
# Visuals (mandatory): geometry + at least one material instance
block.server.components.add(
BlockCollisionBox(origin=(-8, 0, -8), size=(16, 12, 16)),
BlockSelectionBox(origin=(-8, 0, -8), size=(16, 12, 16)),
BlockMaterialInstance().add_instance(
spec=InstanceSpec(
blockbench="enchanting_plus_table",
variations=[InstanceVariant(color="enchanting_plus_table")],
)
),
BlockGeometry(blockbench="enchanting_plus_table"),
BlockDestructibleByMining(seconds_to_destroy=1.5),
)

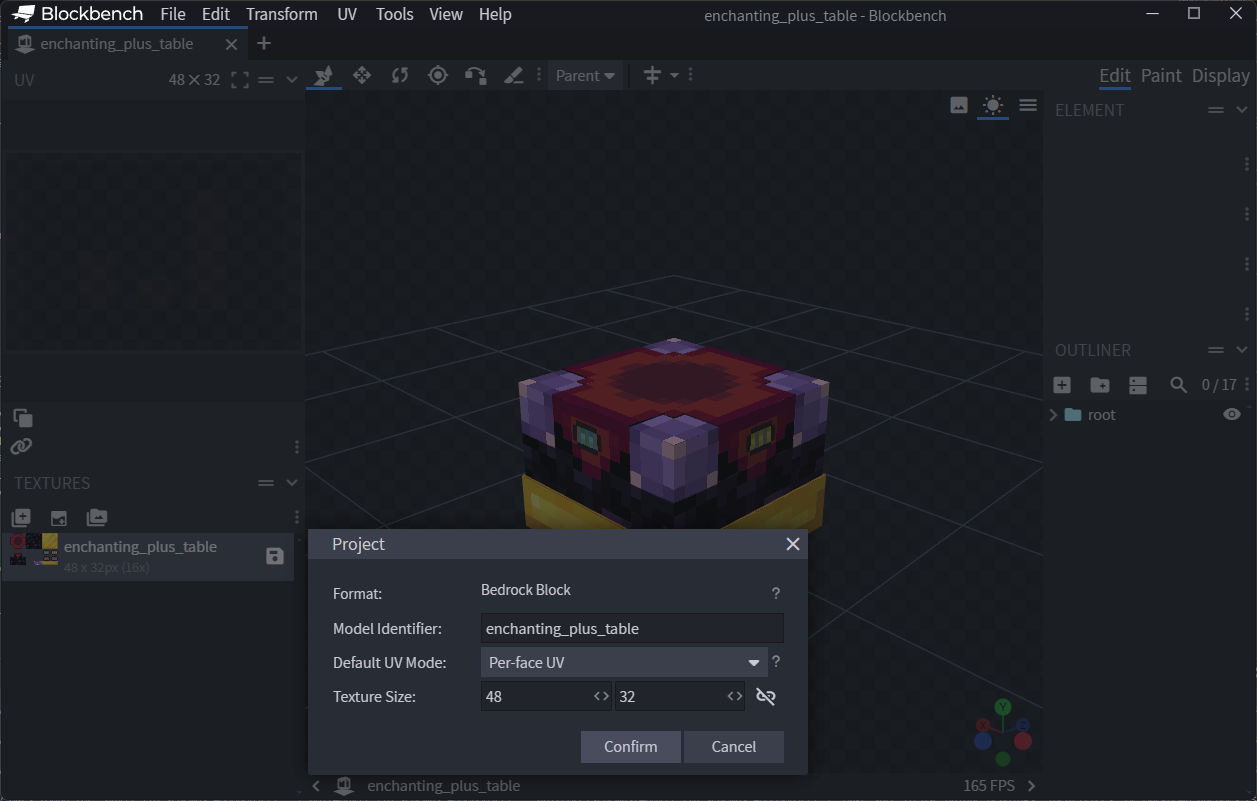

Blockbench references
BlockGeometry(blockbench=...) and InstanceSpec(blockbench=...) name a Blockbench file under assets/bbmodels. Its model identifier must equal the file name, and the texture named in InstanceVariant(color=...) must exist inside that file. Mismatches raise an export error.
Blockbench collections
If your .bbmodel contains exported Blockbench collections, you can reference a specific part with BlockGeometry(blockbench="my_model", collection="bottom"). Anvil exports that collection as its own geometry and references it as geometry.<namespace>.my_model.bottom.
PBR Support
InstanceVariant takes the same arguments as TextureComponents: InstanceVariant(color="block", normal="block_normal", mer="block_mer") enables normal maps and metalness/emissive/roughness channels. See the PBR guide.
Display name
Anvil adds a BlockDisplayName for you, keyed tile.<namespace>:<name>.name in localization.csv. Add BlockDisplayName(value="Enchanting Plus Table") yourself only to override the generated text.
Failure
Visuals are mandatory. Without a BlockGeometry and at least one material instance, the block won't export.
Block Sounds
from anvil.lib.jsonmodel.enums import BlockSoundGroup
block.client.sound_group(BlockSoundGroup.Wood)
Note
A sound group reuses the sounds of a vanilla block and needs no sound files. Custom block sounds are covered in Particles and sounds.
Crafting Recipe
from anvil.api.items.crafting.shaped import ShapedCraftingRecipe
from anvil.api.vanilla.blocks import MinecraftBlockTypes
from anvil.api.vanilla.items import MinecraftItemTypes
recipe = ShapedCraftingRecipe(block.name)
recipe.result(block)
recipe.ingredients(
[
[
MinecraftItemTypes.AmethystShard(),
MinecraftBlockTypes.EnchantingTable(),
MinecraftItemTypes.AmethystShard(),
],
[
MinecraftBlockTypes.GoldBlock(),
MinecraftBlockTypes.GoldBlock(),
MinecraftBlockTypes.GoldBlock(),
],
]
)
recipe.unlock_items([MinecraftBlockTypes.EnchantingTable()])
recipe.queue()
Note
Recipes are optional. If omitted, the block can still be obtained via creative inventory or commands. More recipe types are in Recipes and the item catalog.
Block Item
from anvil.lib.jsonmodel.enums import ItemCategory
from anvil.api.items.components import ItemIcon, ItemMaxStackSize
from anvil.api.pbr.texture_set import TextureComponents
item = block.item
item.server.description.set_menu_category(ItemCategory.Construction)
item.server.components.add(
ItemMaxStackSize(value=64),
ItemIcon(textures=TextureComponents(color=item.name)),
)
Tip
The block's item is available as block.item. Accessing it creates an Item with the block's name, and block.queue() queues it too. The icon is read from assets/textures/items/enchanting_plus_table.png. Add ItemBlockPlacer(block=block) when the item should place the block itself instead of relying on the game's default block item.
Queue the Block
Success
Queuing is mandatory. If you don't call block.queue(), the framework will not export the block.
Queuing the block also queues its client file and its item.
Full Example — Enchanting Plus Table
from anvil.api.blocks.blocks import Block
from anvil.api.blocks.components import (
BlockCollisionBox,
BlockDestructibleByMining,
BlockGeometry,
BlockMaterialInstance,
BlockSelectionBox,
InstanceSpec,
InstanceVariant,
)
from anvil.lib.jsonmodel.enums import BlockSoundGroup, ItemCategory
from anvil.api.items.components import ItemIcon, ItemMaxStackSize
from anvil.api.items.crafting.shaped import ShapedCraftingRecipe
from anvil.api.pbr.texture_set import TextureComponents
from anvil.api.vanilla.blocks import MinecraftBlockTypes
from anvil.api.vanilla.items import MinecraftItemTypes
def enchanting_plus_table():
block = Block("enchanting_plus_table")
block.server.description.set_menu_category(ItemCategory.Construction)
block.server.description.add_state("is_awesome", (False, True))
# Visuals (mandatory)
block.server.components.add(
BlockCollisionBox(origin=(-8, 0, -8), size=(16, 12, 16)),
BlockSelectionBox(origin=(-8, 0, -8), size=(16, 12, 16)),
BlockMaterialInstance().add_instance(
spec=InstanceSpec(
blockbench="enchanting_plus_table",
variations=[InstanceVariant(color="enchanting_plus_table")],
)
),
BlockGeometry(blockbench="enchanting_plus_table"),
BlockDestructibleByMining(seconds_to_destroy=1.5),
)
block.client.sound_group(BlockSoundGroup.Wood)
# Crafting recipe (optional)
recipe = ShapedCraftingRecipe(block.name)
recipe.result(block)
recipe.ingredients(
[
[
MinecraftItemTypes.AmethystShard(),
MinecraftBlockTypes.EnchantingTable(),
MinecraftItemTypes.AmethystShard(),
],
[
MinecraftBlockTypes.GoldBlock(),
MinecraftBlockTypes.GoldBlock(),
MinecraftBlockTypes.GoldBlock(),
],
]
)
recipe.unlock_items([MinecraftBlockTypes.EnchantingTable()])
recipe.queue()
# Block item (optional)
item = block.item
item.server.description.set_menu_category(ItemCategory.Construction)
item.server.components.add(
ItemMaxStackSize(value=64),
ItemIcon(textures=TextureComponents(color=item.name)),
)
# Finalize (mandatory)
block.queue()
return block
EnchantingPlusTable = enchanting_plus_table()
Advanced Features
Custom Ticking
Use BlockTick to make your block run a tick custom component event periodically or randomly.
from anvil.api.blocks.components import BlockTick
block.server.components.add(BlockTick(interval_range=(10, 20), looping=True))
Custom Components
For more complex logic, attach Custom Components. These are scripts that run in the game and can interact with the world.
from anvil.api.blocks.components import BlockCustomComponent
class MyBlockLogic(BlockCustomComponent):
identifier = "my_block_logic"
block.server.components.add(MyBlockLogic())
See the Custom Components Guide for parameters and the TypeScript side.
States, Permutations and Traits
Make the block change with its state (a lit lantern, a rotated model) in Block states, permutations and traits.
World Generation
To make your block generate naturally in the world, see Generating features.
